M600 Pro 6010 Power Combo(CCW)
With this product, you earn 333 loyalty points.m600 6010 Motor,DJI Genuine,no label,1240S Pro ESC,R2170 Propeller,CCW

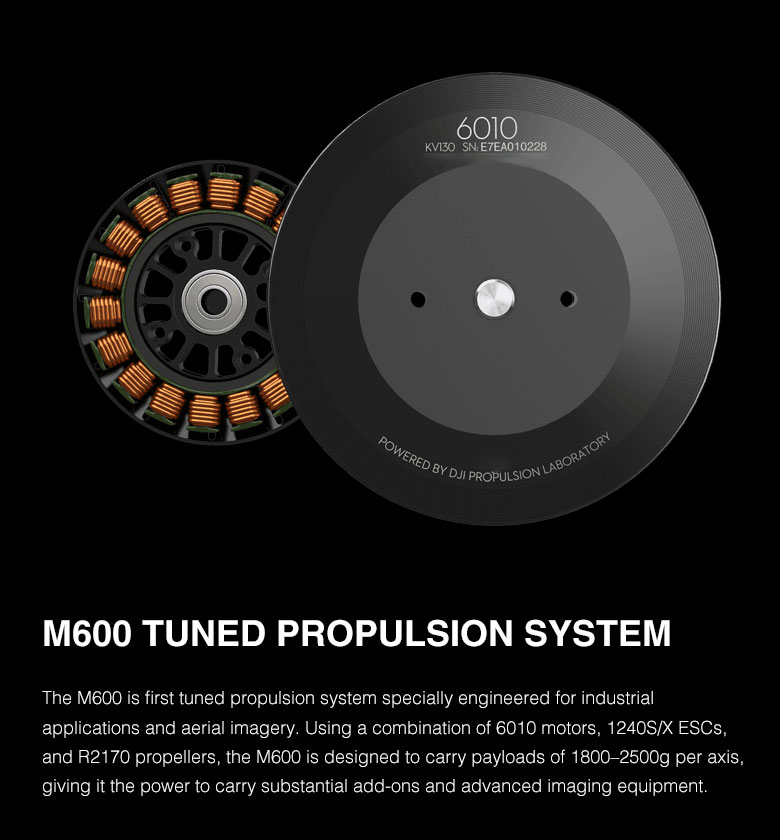

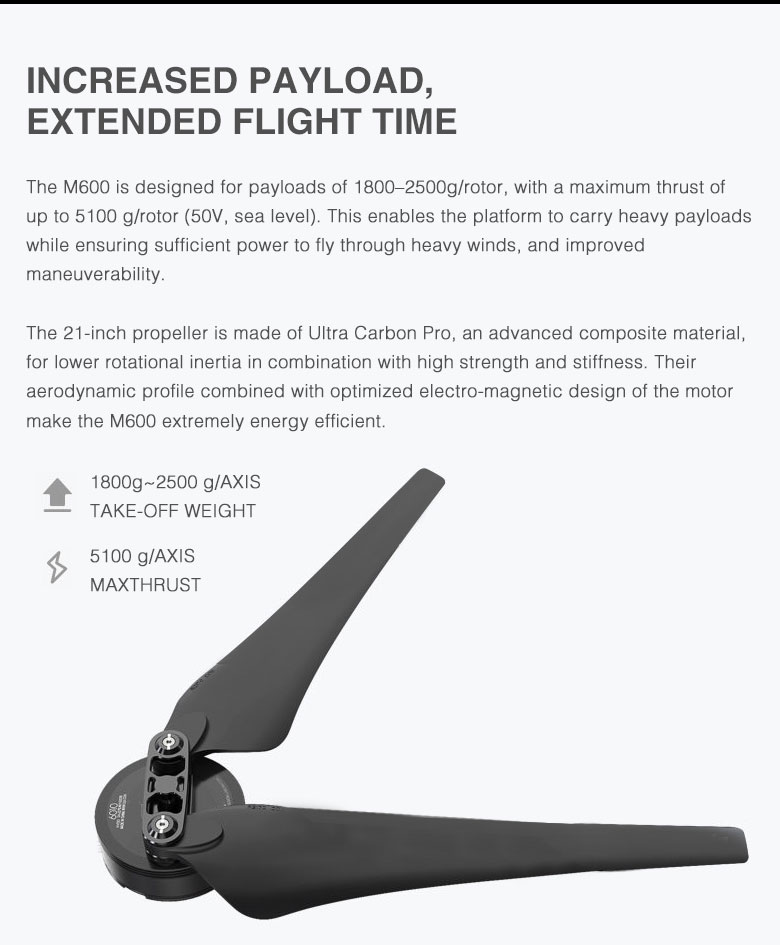

The M600 6010 power combo is tuned propulsion system specially engineered for industrial applications and aerial imagery. Using a combination of 6010 motors, 1240X ESCs, and 2170 propellers, the M600 6010 power combo is designed to carry payloads of 1800–2500g per axis, giving it the power to carry substantial add-ons and advanced imaging equipment.
SPECIFICATIONS:
-Max Thrust: 5100 g/rotor (50 V, Sea Level)
-Recommended Battery: 12S LiPo
-Recommended Takeoff Weight: 1800 - 2500 g/rotor (Sea Level)
Motor
- Stator Size: 60*10mm
- KV: 130rpm/V
- Weight: 230g

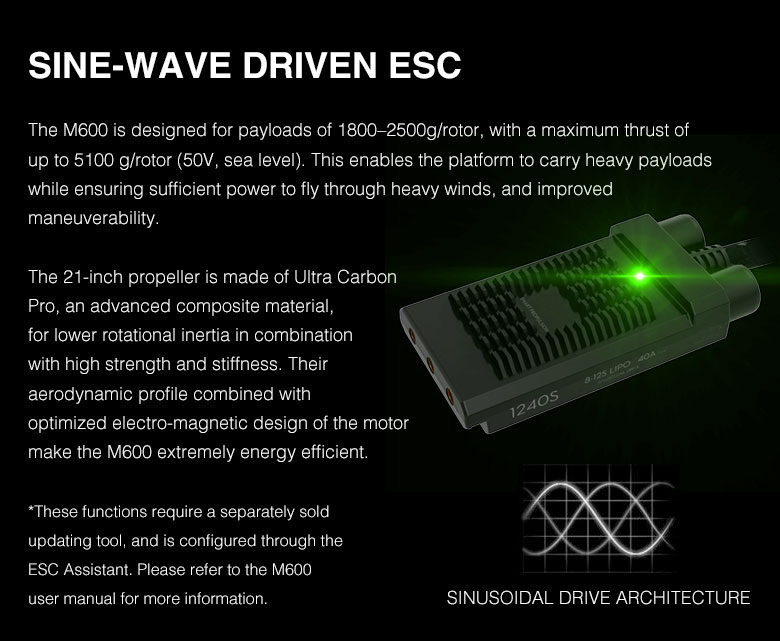

ESC
- Max Allowable Voltage: 52.2V
- Max Allowable Current (Continuous): 25A
- Max Peak Current (<3 sec): 40A

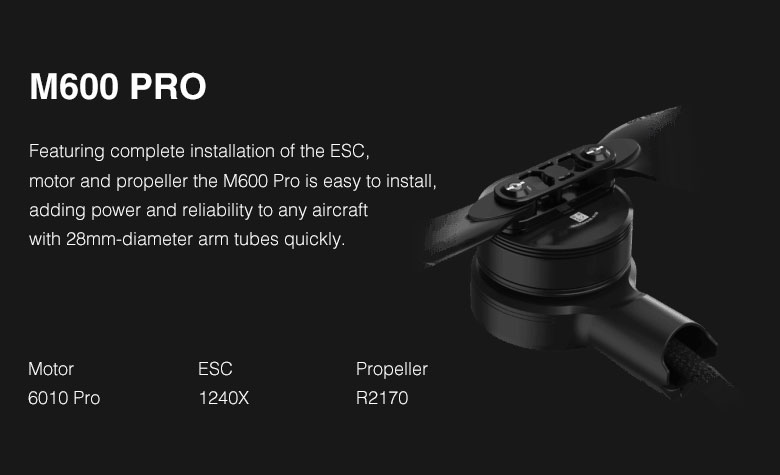

This combo includes:
- 1x6010 Pro Motor
- 1x1240X ESC
- 1xR2170 Propeller(CCW)

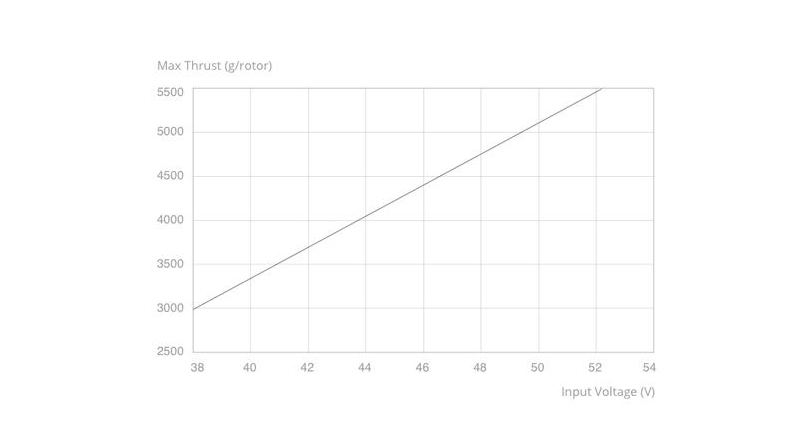

The data above was measured with an input voltage of 44.4V, at room temperature and sea level. The thrust was adjusted by the throttle.

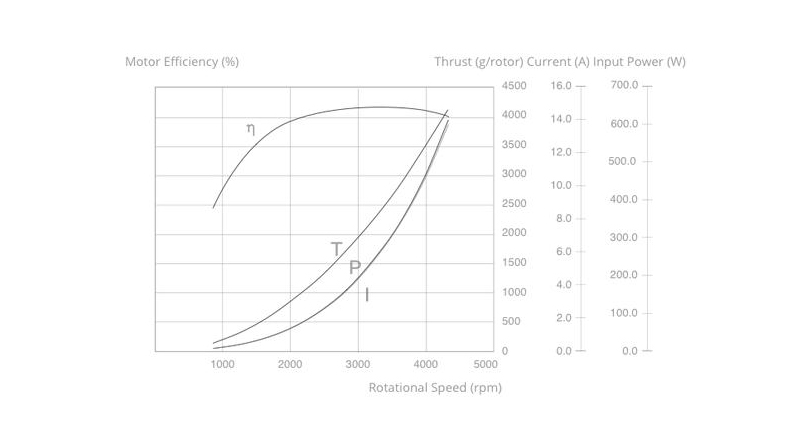

η – Motor Efficiency, T – Thrust, I – Current, P – Input Power
The data above was measured with an input voltage of 44.4 V, at room temperature and sea level. The rotational speed was adjusted by the throttle.
