FH18C 520tvl wide voltage mini camera

In stock(0)
Sku:  P00006
As low as $26.68 Regular Price $29.64
Reward Points With this product, you earn 27 loyalty points.
Foxtech,FPV,520tvl,wide voltage,super mini


Sensor: Single chip 1/3 CMOS
System: NTSC & PAL
Number of pixel: NTSC: L656 (H)x492 (V); PAL:786 (H)x576 (V)
Image signal process: Digital signal processing system
Sensor dimension: 4.75 (H)x3.55mm (V)
Horizontal resolution: 520TV Lines
Scanning system: 2:1 Interlace
Sensitivity: 0.008Lux/F1.2
Lens& View angle: 0.5mm F2.0 / 62 °
S/N Ratio: 48dB
Video out: 1.0V p-p/75ohm
Size (LxWxH): 24x18x15mm
Weight: 8g
Working voltage: 3.6-24V
Lens: 3.6mm

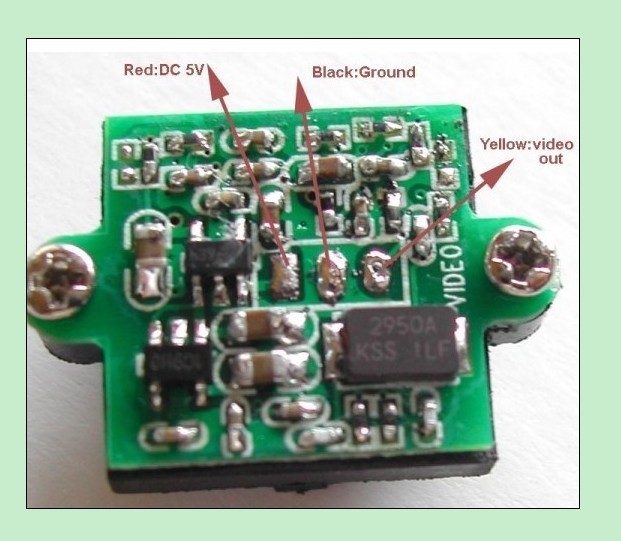

if you remove the regulator board on its back ,it will work at 3.3-5V
