EH30 Series 30x-35x Optical Zoom Starlight Camera with 3-axis Gimbal

In stock(0)

Sku: 2003121

VolumeWeight: 4000kg

As low as $3,289.00

With this product, you earn 3289 loyalty points.

Foxtech EH30 Series 2/5/12 Megapixels Starlight Camera feature 30x-35x optical zoom with 3-axis gimbal, which support 720P/1080P HD video output with Ethernet port and 1080P/4K HD video recorded in Max. 128GB micro SD card. Sbus control is also supported with an OSD module through Wincc. There are two versions to choose from: 0.001lux starlight EH30T, and 0.1lux dark grade/low light EH30GT. UV filter, CMOS 1/1.8″ large image sensor, 3-axis high-precision, ±0.008° accuracy, electronic and optical fog penetrate, target tracking, fast-assembly/quick-detach design, multi-platform mounting

Skip to the end of the images gallery

Skip to the beginning of the images gallery

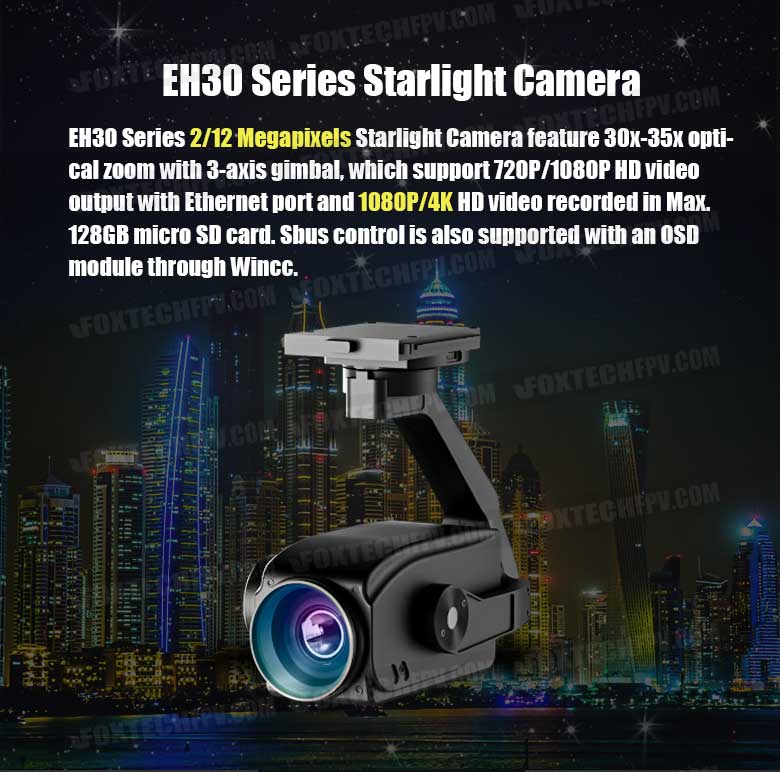

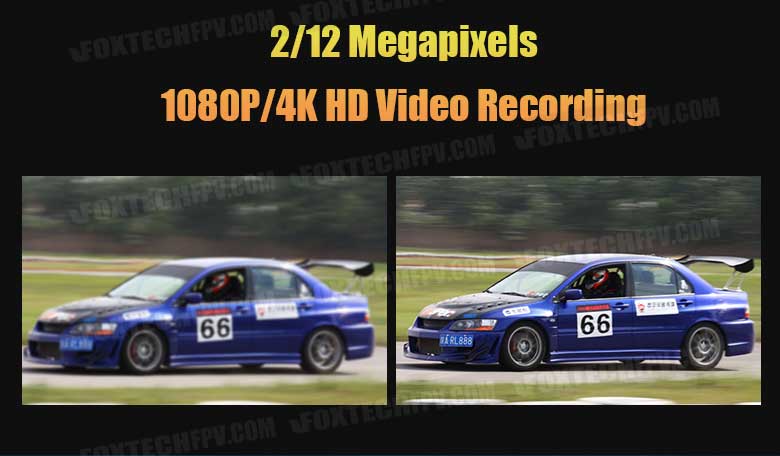

EH30 Series 2/12 Megapixels Starlight Camera feature 30x-35x optical zoom with 3-axis gimbal, which support 720P/1080P HD video output with Ethernet port and 1080P/4K HD video recorded in Max. 128GB micro SD card. Sbus control is also supported with an OSD module through Wincc.

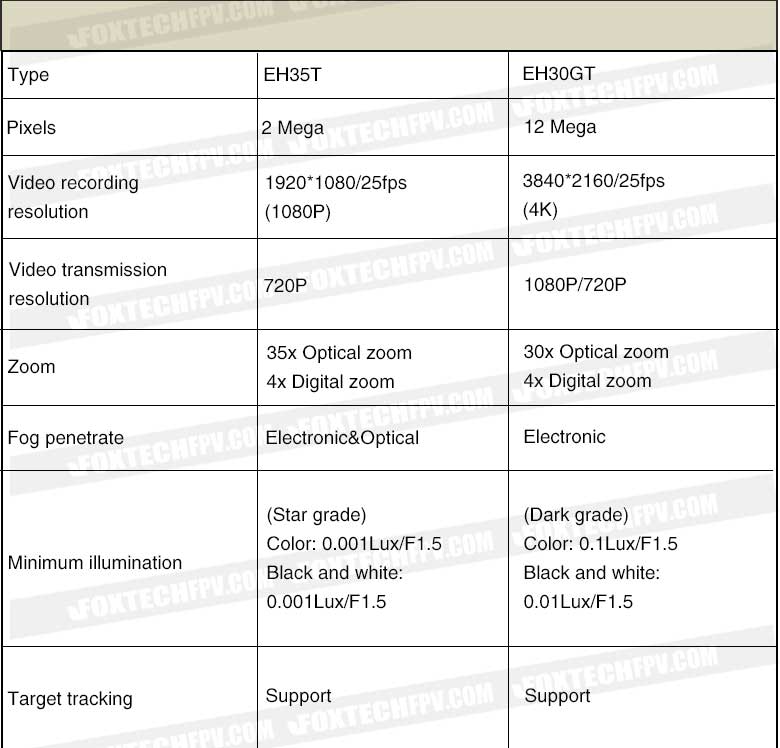

There are two versions to choose from: 0.001lux starlight 35x optical zoom 2 mega EH35T, and 0.1~0.01lux low light 30x optical zoom 12 mega EH30GT.

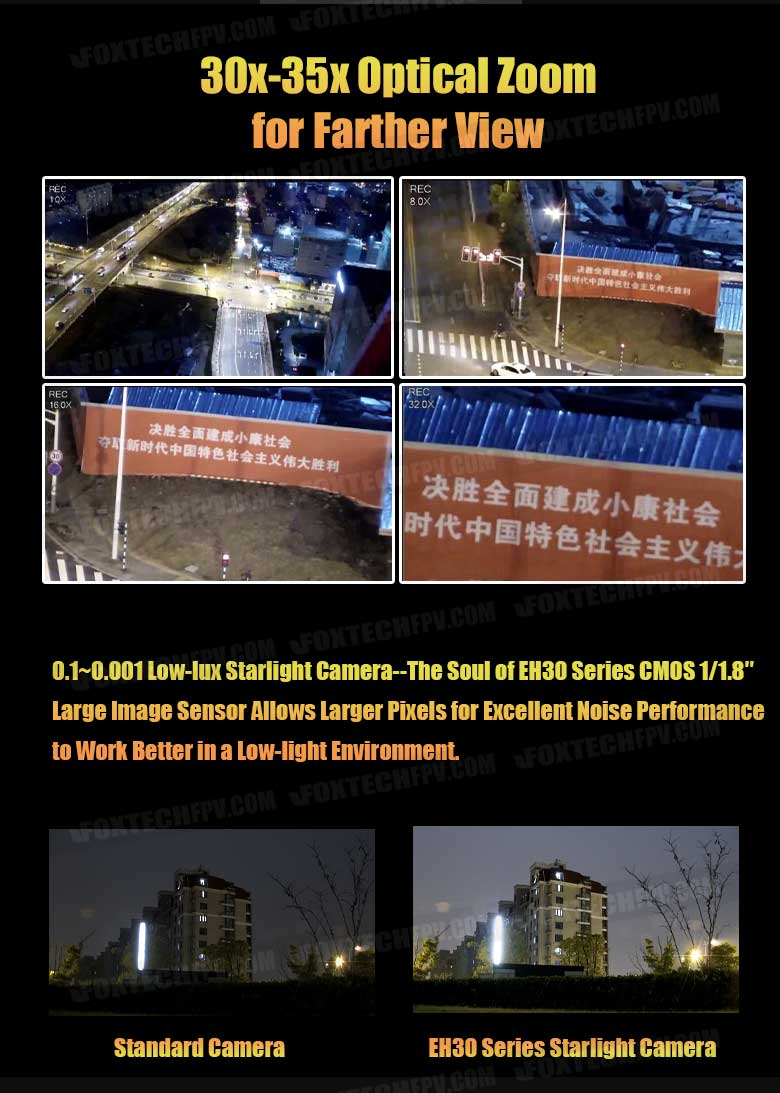

The soul of EH30 Series CMOS 1/1.8″ large image sensor is adopted to allow larger pixels for excellent noise performance to work better in a low-light environment, as larger pixels more ably handle gaps in brightness to reproduce better image detail.

EH30 Series involves a coaction of electronic and optical fog penetrate technology to enhance image quality: the electronic type relies on a built-in chip to process the pictures while the optical type adds a fog filter to the lens.

And with its 3-axis high-precision stabilization technology, whose accuracy is ±0.008°, it can record stable HD videos without shake, giving you smooth video.

A UV filter is added to protect the lens from dust or getting cracks, or block blue-purple hues caused by ultraviolet rays especially at open fields like the seaside, mountains, prairie.

Target tracking is initiated by two means: click-to-track through GCS or remote control switch through Sbus control.

EH30 Series adopts fast assembly design, and it is interchangeable with EH314 and EH640 Series. It supports multi-platform mounting, making it easy to mount on a variety of fixedwings and multirotors like Great Shark VTOL, Rhea 160 Hexacopter, Gaia 160S, etc.

It can be easily operated through GCS to execute commands like one-key centering. With a pad or mobile phone which has GCS installed, it can achieve point-to-zoom or point-to-track, etc.

EH30 Series can be widely applied in inspection, surveillance, monitoring, etc.

Your Purchase Includes:

1x Foxtech EH30 Series 30x-35x Optical Zoom Starlight Camera with 3-axis Gimbal

1x Gateway Damping Plate
1x Network Cable

Optional:

OSD Module

APP:

GCS (Gimbal camera control; screen display; change IP address of the camera)

Wincc (needs OSD module) (Channel setting; camera firmware upgrade)

(As for parameter configuration, please visit https://www.youtube.com/watch?v=J__o42im5K8)

Video Footage:

https://www.facebook.com/310304665734184/videos/517045712519832
