Based on D130 Version I‘s success, the strength and flight time of Version II are improved to meet higher requirements.

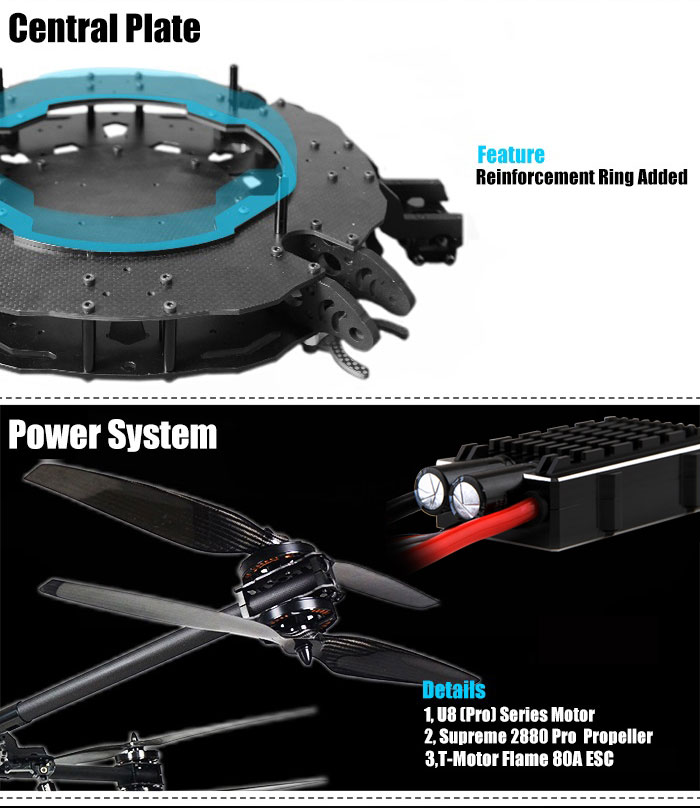

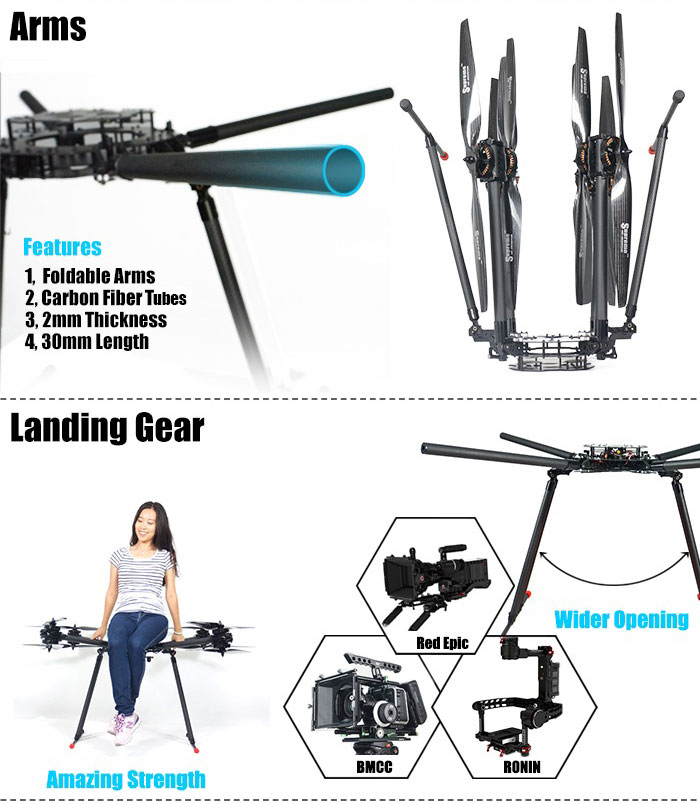

Removing Version I center damper plate, the strengthened center plate consists of 4mm carbon fiber plate with reinforcement ring and 4mm aluminum plate; the thickened arm tube is still 30mm in diameter but 2mm thickness now; the new landing gear system is with optimized standing angle which gives more space to take larger photography equipment, the optional dual landing gear makes landing still stable even with heavier load; two power systems are avaialble. 12S power system is formed with T-motor U8 KV100, T-Motor Flame 80A ESC and Foxtech Supreme 2880 Pro Propeller, under 12S, the take-off weight can reach 24kg maximum, the flight time is 48minutes without load . 6S power system is formed with T-motor U8 KV170, Foxtech Multi-Pal 60A OPTO ESC and Foxtech Supreme 2880 Pro Propeller, under 6S, the take-off weight can reach 20kg maximum, the flight time is 50minutes without load.

Foxtech D130 V-II brings all innovations, technology and experimental tests together to make such bright change.

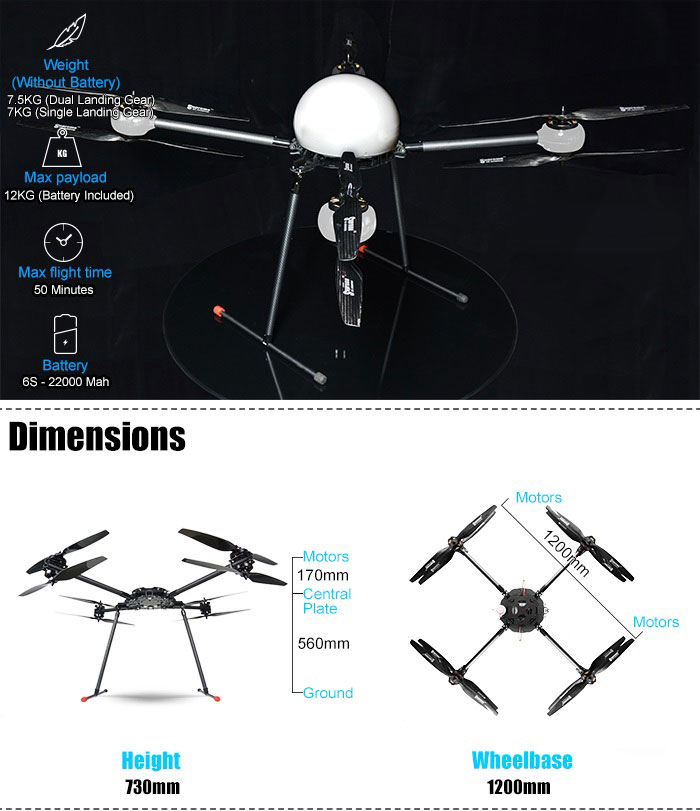

Diameter: 1300mm

Weight: 12S: 7.2kg (No Battery, no gimbal); 6S: 7.0kg (No Battery, no gimbal)

Max Take-off Weight: 12S: 24kg; 6S: 20kg

Max Pay Load: 12S: 16kg (Include Battery); 6S: 12kg (Include Battery)

Max Flight Time: 12S: 48mins (No Load); 6S: 50mins (No Load)

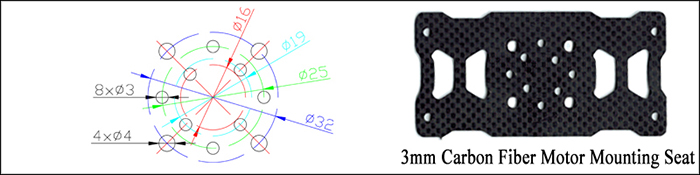

The Motor Mounting Size:





Automatic Landing Gear Controller Wiring Diagram:

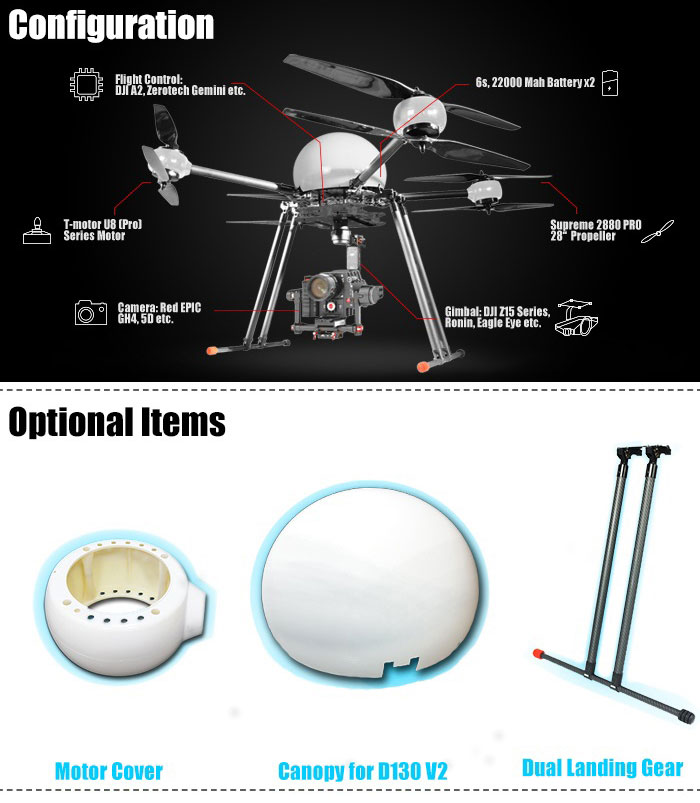

-1*D130 Dual Landing Gear

-1*Foxtech D130 Canopy (Available Soon)

-8*Foxtech Motor Cover (Available Soon)
