FOXTECH SEEKER-30 HD 30X Optical Zoom Camera with 3-axis Gimbal-Free Shipping

In stock(2)
Sku:  710251
Weight:  1g
Special Price $2,419.00 Regular Price $2,499.00
Reward Points With this product, you earn 2419 loyalty points.
FOXTECH SEEKER-30 is a high-precision professional 3-axis gimbal with a 30X 1080P Optical Zoom Camera which features high stability,small size and light weight.The 30X Optical Zoom Camera has 4 mega effective pixels, supports 30X optical autofocus. The zooming function makes it possible to see objects in detail over distance. The SEEKER-30 offers 1080p FULL HD 30fps video recording onboard and 1080p HDMI output for HD video transmission back to the ground. FOXTECH SEEKER-30 support both PWM control and serial command control, suitable for close range remote control or remote data command control.



FOXTECH SEEKER-30 is a high-precision professional 3-axis gimbal with a 30X 1080P Optical Zoom Camera which features high stability,small size and light weight. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. The speed of the gimbal is ajustable, LOW speed mode is used for large zoom range, so the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal returning to initial position automatically and rapidly.

The 30X Optical Zoom Camera has 4 mega effective pixels, supports 30X optical autofocus. The zooming function makes it possible to see objects in detail over distance. The SEEKER-30 offers 1080p FULL HD 30fps video recording onboard and 1080p HDMI output for HD video transmission back to the ground. FOXTECH SEEKER-30 support both PWM control and serial command control, suitable for close range remote control or remote data command control.
FOXTECH SEEKER-30 can be applied in many fields like military reconnaissance, police surveillance and evidence collection, disaster prevention and mitigation, emergency monitoring and rescue etc.



Specifications:
Working voltage: 12V
IDDQ: 330mA@12V
IDDT: 450mA@12V

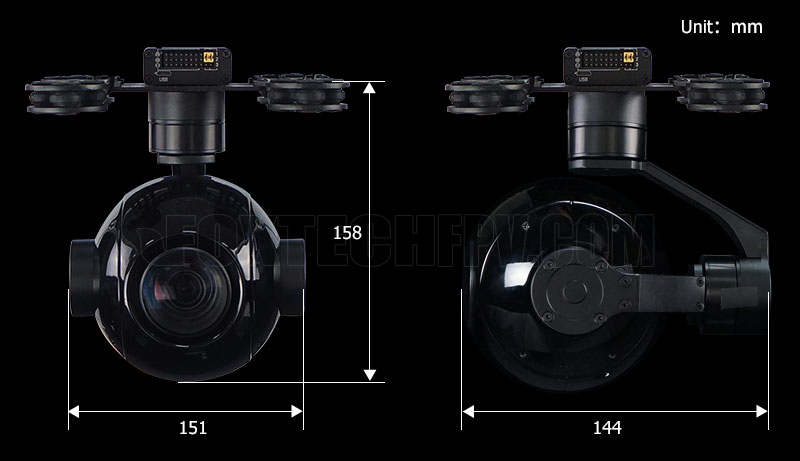

Size: 144x151x158mm
Weight: 848g
Pitch: -90°to +90°
Roll: -85°to +85°
Yaw: -150°to +150°
Angular Vibration Range:
Pitch & Roll: ±0.02°Yaw: ±0.03°
Working temperature: -20~+80 °C




Camera features:

Lens:30X optical zoom lens
Sensors: 1/3" 4 megapixel CMOS sensor
Video output resolution: 1920*1080P@60fps
Storage resolution 1080P
Focus time: <1S

Zoom focal length f=4.5~135mm, aperture diameter Φ16
Wide dynamic: support (dynamic range can reach 105dB)
Image rollover: support
Automatic white balance: support
Auto gain control: support
Auto color correction: support
Support PWM and serial control
Miroc-HDMI HD 1080P60 output, 1080P30 video stream in local
TF card storage



Your Purchase Includes:
-1x Foxtech SEEKER-30 HD 30x Optical Zoom Camera
-1x Foxtech SEEKER-30 3-axis gimbal
-12x Damping Component
-4x Copper pillar
-1x Screw pack

Manual Download
